How To Use A Turnbuckle?

Before installing any type of turnbuckle hardware, it is crucial to understand the distinction between right-hand and left-hand threads, as well as the Working Load Limit (WLL). To gain further knowledge about M.B.S (Minimum Breaking Strength) and W.L.L, you can click here.


In general, right-handed screw threads are the standard convention for most threads. Consequently, the majority of threaded components and fasteners are designed with right-handed threads.

How To Use A Turnbuckle?1

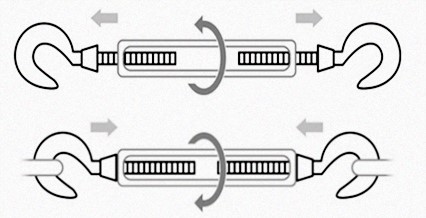

When observed from a perspective aligned with the axis passing through the center of the helix, a thread appears to move away from you when rotated clockwise and towards you when rotated counterclockwise. This particular configuration is referred to as a right-handed (RH) thread, as it adheres to the right-hand grip rule. Conversely, threads that exhibit the opposite motion are known as left-handed (LH) threads.

How To Use A Turnbuckle?2

So commonly you can see the letter “R” and ” L” on both turnbuckle body end.

How To Use A Turnbuckle?3

Here are some straightforward steps to keep in mind:

1. Begin by unscrewing the end fittings from the turnbuckle body until they are fully extended to the maximum take-up length.

2. Next, connect the end fittings on either end to the desired securement point. For eye end and hook end fittings, simply loop them through the securement point they will be attached to. As for a jaw end fitting, unscrew the bolt from the jaw, position the securement point between the clevis ears (such as a thimble or eye bolt), then insert the bolt through and screw it tightly.

By following these steps, you can properly install the turnbuckle hardware.

How To Use A Turnbuckle?4


By following the step-by-step guide provided in this article, you can confidently utilize turnbuckles in various projects, ensuring optimal tension and enhanced safety. Remember to prioritize maintenance and adhere to safety guidelines for long-lasting and trouble-free use. If you want to get more useful knowledge about how to use a turnbuckle, Please get in touch with us.
